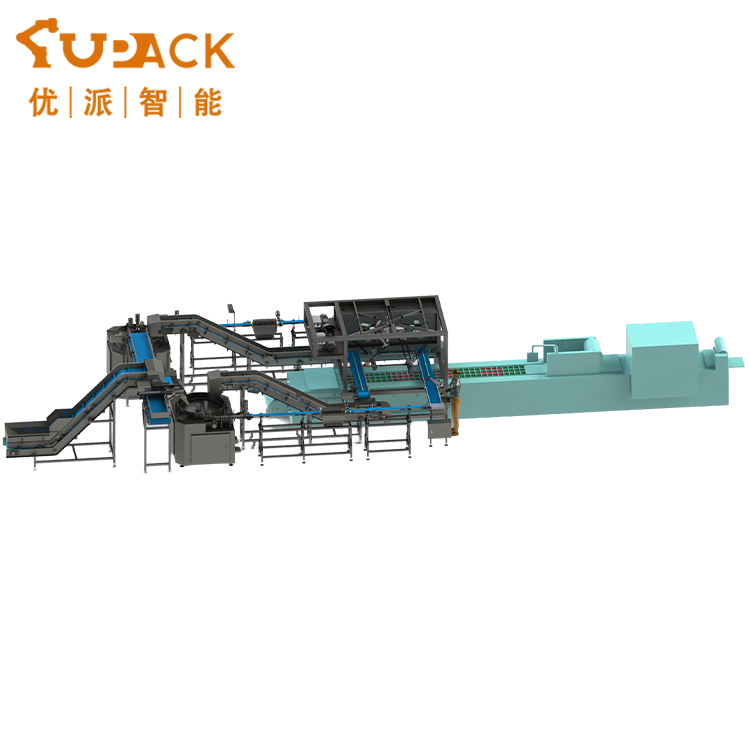

Thermoforming machine automatic feeding system-double-channel

Thermoforming machine automatic feeding system-double-channel

Inquiry
  • Overview
  • Description
  • Specifications
  • Applications
  • Competitive Advantage
Place of Origin: China
Brand Name: UPACK
Minimum Order Quantity: 1 set
Packaging Details: Composite Wooden Crates
Delivery Time: 80 days
Payment Terms: To be discussed

辅图 (2).png 辅图 (3).png 辅图 (1).png 辅图 (4)(db0425a40a).png
Description:

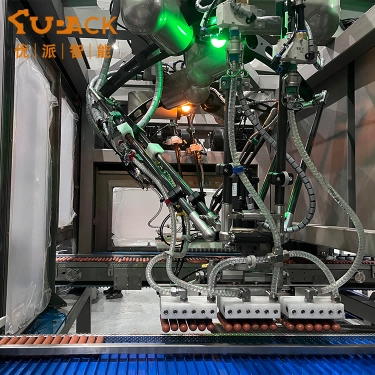

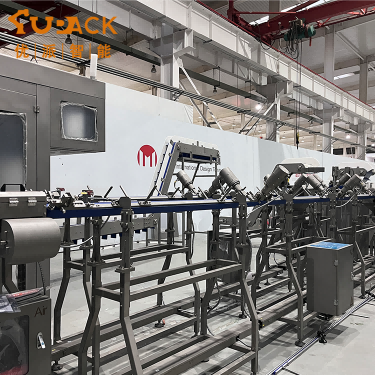

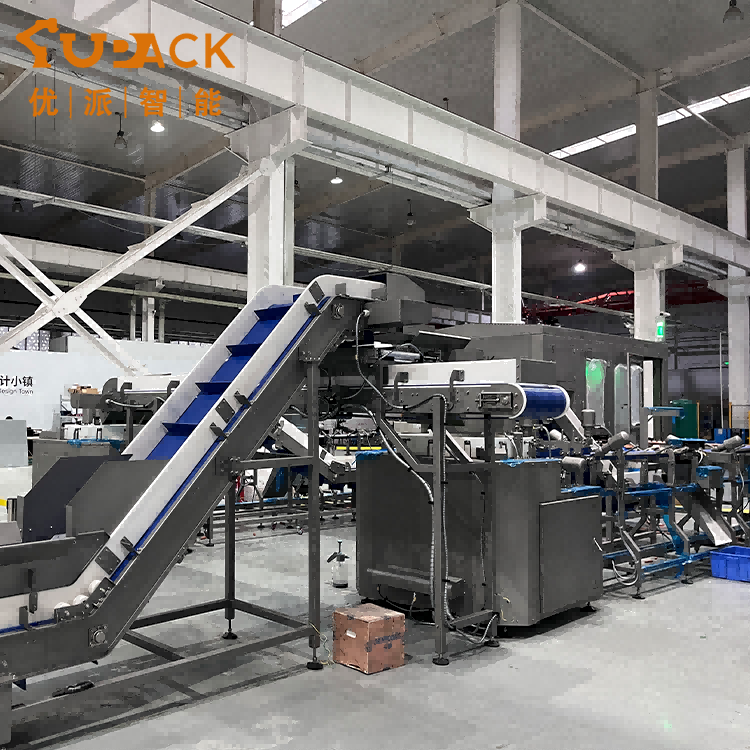

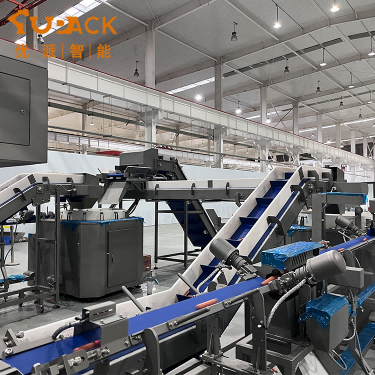

The production line centers on automated control, rapidly conveying products to the disc sorting system via feeding mechanisms. The disc sorting device adjusts the orientation of the sausages and arranges them in orderly rows, ensuring consistent alignment as they proceed to the next stage. During the automatic rejection stage, the production line employs high-precision sensors and a vision inspection system to monitor the appearance, dimensions, and weight of the sausages in real time. Any non-conforming products are immediately ejected via a high-speed pneumatic actuator. The screened products are then conveyed through an automatic discharge system to the robotic gripper station. The robotic arm precisely identifies and locates the sausages, enabling rapid and stable gripping.
Specifications:
Air pressure(Mpa) 0.6-0.8
Size(mm) 8600*4200*2800
Maximum feed speed 900-1000pcs/min
Power 380V/50Hz
Applications:
Scope of Application: Table-grilled sausages, pure meat sausages, authentic sausages, volcanic stone sausages, and other similar-sized standardized products (product diameter 18-32mm, length 60-140mm, weight 35-70g).
Competitive Advantage:
The entire line features high automation, with PLC control systems enabling coordinated operations and precise control across all processes. This significantly reduces manual intervention, lowers labor intensity, and minimizes human error. Meanwhile, the modular design philosophy ensures excellent maintainability and scalability. Enterprises can flexibly configure functional modules based on production scale and process requirements, enabling rapid upgrades and modifications to the production line.
