Delta Robot

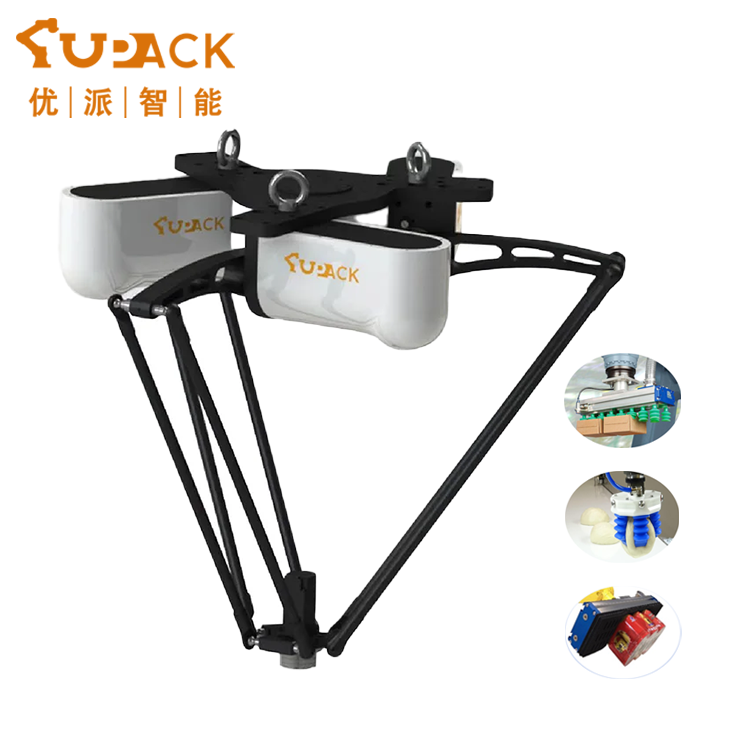

Delta Robot

Inquiry
  • Overview
  • Description:
  • Competitive Advantage
  • Specifications
Place of Origin: China
Brand Name: UPACK
Minimum Order Quantity: 1 Set
Packaging Details: Composite Wooden Crates
Delivery Time: 30 days
Payment Terms: To be discussed

辅图 (1)(79c28cab2d).png 辅图 (3)(16e587bf3d).png 辅图 (2)(586fc79194).png 辅图 (4)(bfcaec812f).png
Description:
• Delta robot developed based on a KEBA control system
servo drive and imported brand control system;
• Vision recognition system intelligently identifies,
locates and grabs products without complex
material handling mechanism;
• It is applicable to automatic packing of various
products, such as soft, hard package, boxed,
single piece and single product;
• Support customization according to customer
production site conditions.
Competitive Advantage:
This series of products is thick, stable and reliable. It is a classic parallel robot configuration. The 3D space XYZ
translation and rotation operation mode around the Z axis have the advantages of fast speed, good accuracy, high stability, strong flexibility, etc.
• The two-degree-of-freedom high-speed parallel robot tailored to the requirements of plane handling and assembly operations of light materials does not need to be equipped with vision and relies on sensor positioning to complete plane operations.
Specifications:
Model UPDT-800-W5 UPDT-1100-W10 UPDT-1100-W15
Axes 3+1 3+1 3+1
Maximum load 5 10 15
(kg)
Body weight 85 90 92
(kg)
Working range(mm) a 800 110 1100
b 175 180 200
c 80 150 180
d 400 500 600
Repeat 0.05 0.05 0.05
Rotation range 土360° 土360° 土360°
Maximum permissible 0.03kg*㎡ 0.03kg*㎡ 0.03kg*㎡
Power supply 220V 50Hz 220V 50Hz 220V 50Hz
Rated power 2.35kw 3.40kw 3.40kw
Working environment -10°~50° -10°~50° -10°~50°
Protection level IP55 IP55 IP55
